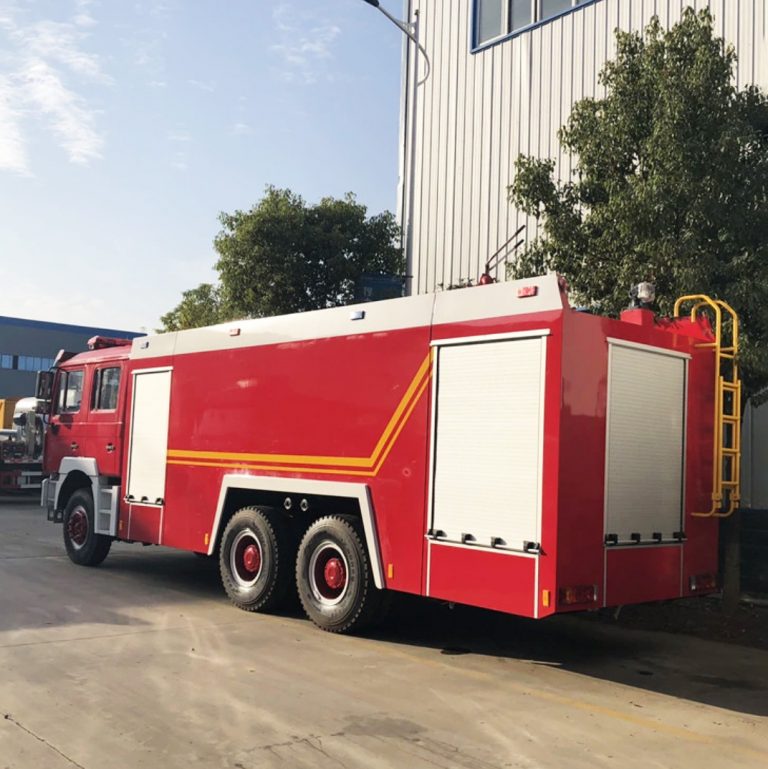

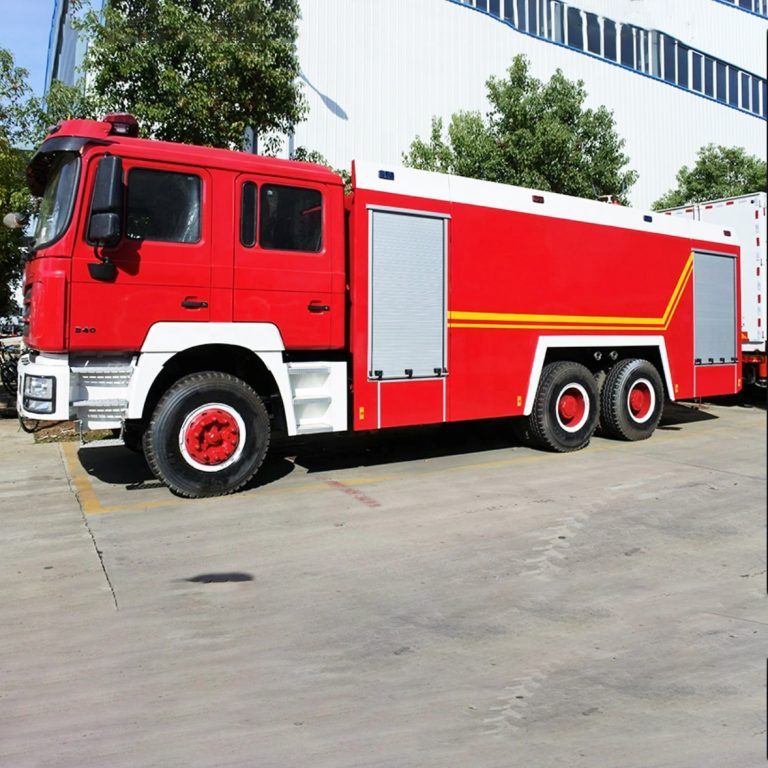

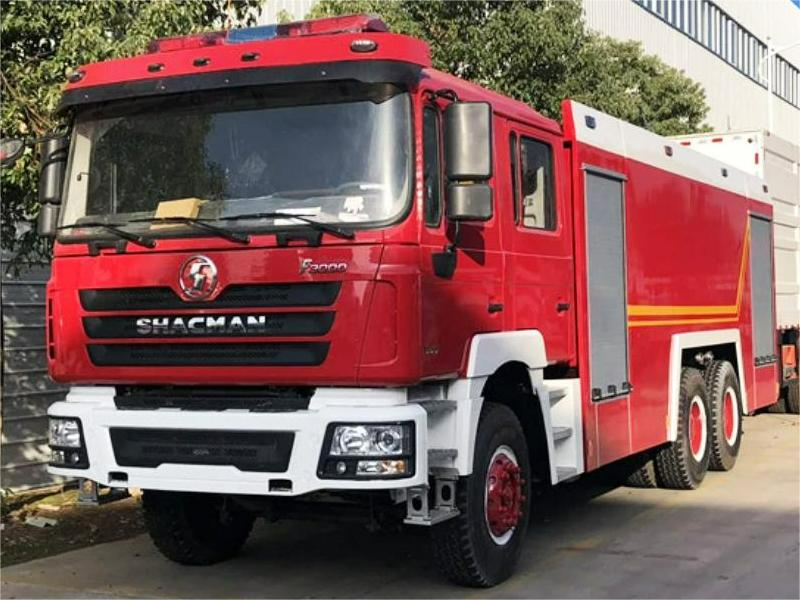

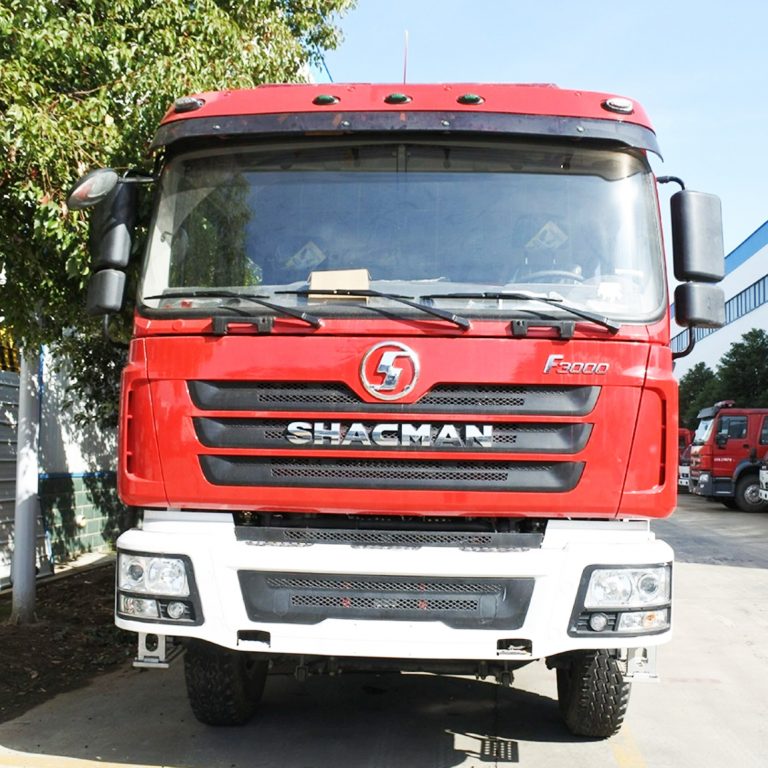

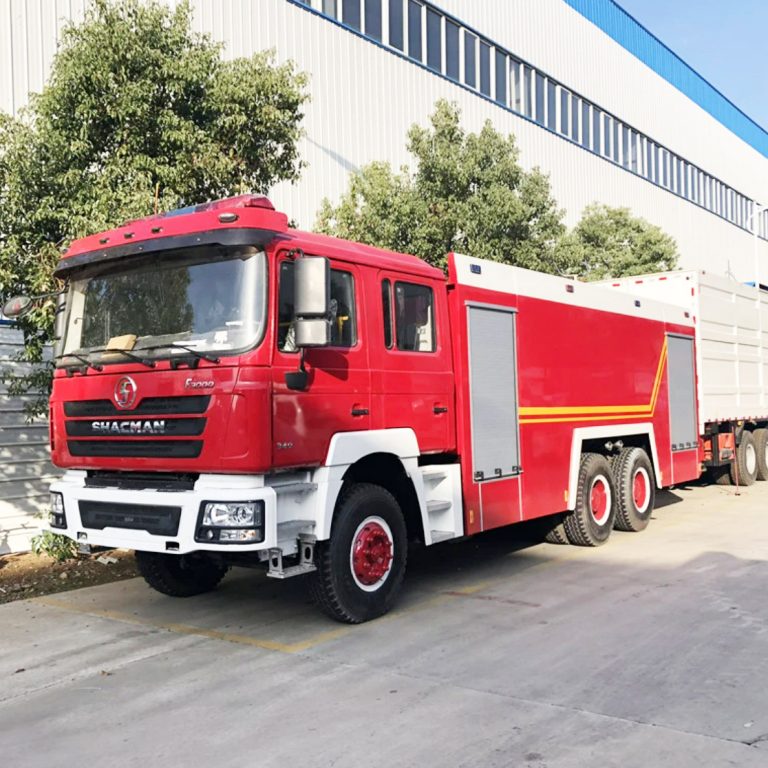

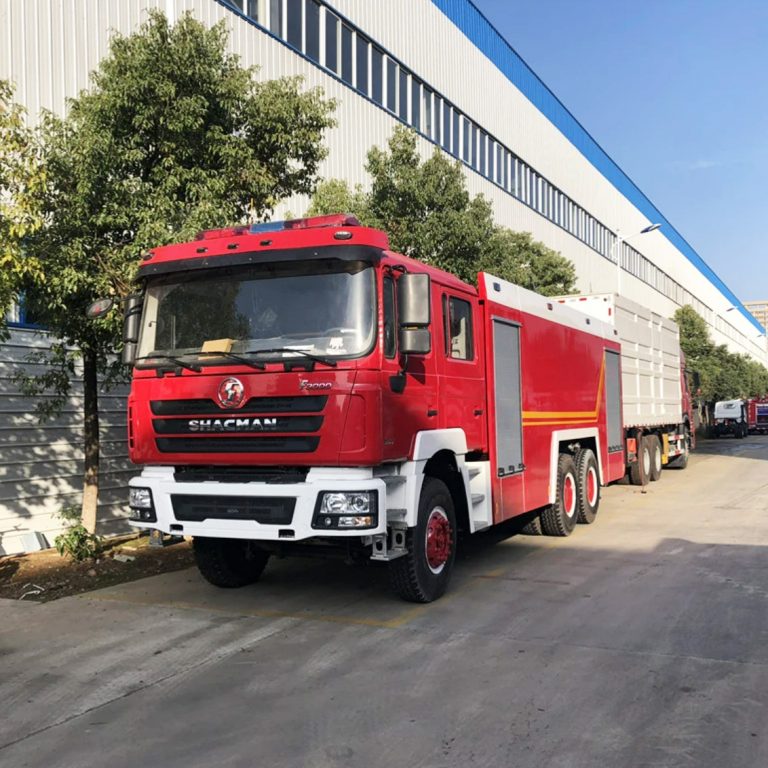

Shacman F3000 Fire Fighting Truck

Product Parameters

Cabin： 6×4 Double Row Cab with Air condition

Overall dimensions (L x W x H)：9895x2496x2958mm

Water tank dimention:10m3

Foam tank dimention:2m3

Dry powder tank dimension：1200x1100x1100mm (500kg)

GVW：Appro×19000 kg

Curb weight：Appro×10550kg

Wheel base  (mm)：4600+1350

Payload：Appro×8450

F/R track base：1940/1860

F/R suspension:1500/2435

Approach/departure angle:16/13

Max speed：90km/h

Axle Load：7000/12000Kg

Tire specification:12.00-20 16PR

Number of axles：2

Engine model：WD615.69–Diesel, 6 Cylinder, direct line, water cooling

Engine performance：9726ml/247Kw, 336hp

Steering Gear：ZF 8098 power steering—hydraulic steering with power assistance

Transmission：10F&2R

Cab passenger：5

Electric System：24V

Tank material：Carbon steel

Emission standard：Eu 2（Optional:Euro3/Euro4/Euro 5）

Fire Cannon:BS30  , 60L/S/1Mpa

Working Range:>50 m

Fire Pump:CB10/60

Performance：60L/s , 1.0Mpa

Product Introduction

The special part of the foam fire truck consists of a liquid tank, a pump room, an equipment box, a power output and a transmission system, a piping system, and an electrical system.

Foam fire trucks are suitable for urban public security fire brigades, petrochemicals, factories and mines, forests, ports, terminals and other departments.

Fire equipment:

Foam fire truck fire equipment routine configuration: fire suction pipe (caliber 10 cm, 4 m long) × 2, water filter × 1 piece, fire hose (caliber 6.5 cm, 20 m long: caliber 8.5 cm, 20 m long ) × 2 roots, water hose hook × 4 pieces, water belt cloth × 4 pieces, different diameter interface (caliber 6.5-8.5 cm) × 2 sets, same type interface × 1 set, DC water gun (caliber 6.5 cm) × 1 set , flowering water gun × 1 set, DC switch water gun × 1 set, artichoke × 1 handle, ground wrench × 1 handle, waist axe × 1 handle, fire board axe × 1 handle, iron pick × 1 handle

Fire equipment
Air foam gun, water gun, fire hose, water filter, water separator, fire hose, hose hook, water belt cloth, reducer interface, same type interface, DC water gun, fire hydrant transition joint, flowering water gun, DC Switch water gun, sheep scorpion, ground wrench, suction pipe wrench, belt bridge, mixer pipette, waist axe, fire axe, shovel, shovel.

Emergency equipment
Ladder, bamboo ladder, iron ladder, etc. (overhead), motorized chain saw, hydraulic expansion pliers, portable universal cutter, climber, lifting air cushion, pneumatic rescue tool, gas cutter, axe, boring, pliers, Hey.

Protective equipment
Fire helmets, fire fighting suits, fire gloves and fire boots, fire safety belts and insurance hooks, respiratory protection devices, built-in heavy chemical protective clothing, closed chemical protective clothing, fireproof chemical protective clothing, military anti-chemical protective clothing, simple Chemical protective clothing, fire-proof clothing, mobile air supply, double cylinder respirator, multi-purpose canister, anti-chemical gloves, electric insulating gloves, cut-proof gloves, high temperature gloves, anti-chemical safety boots
