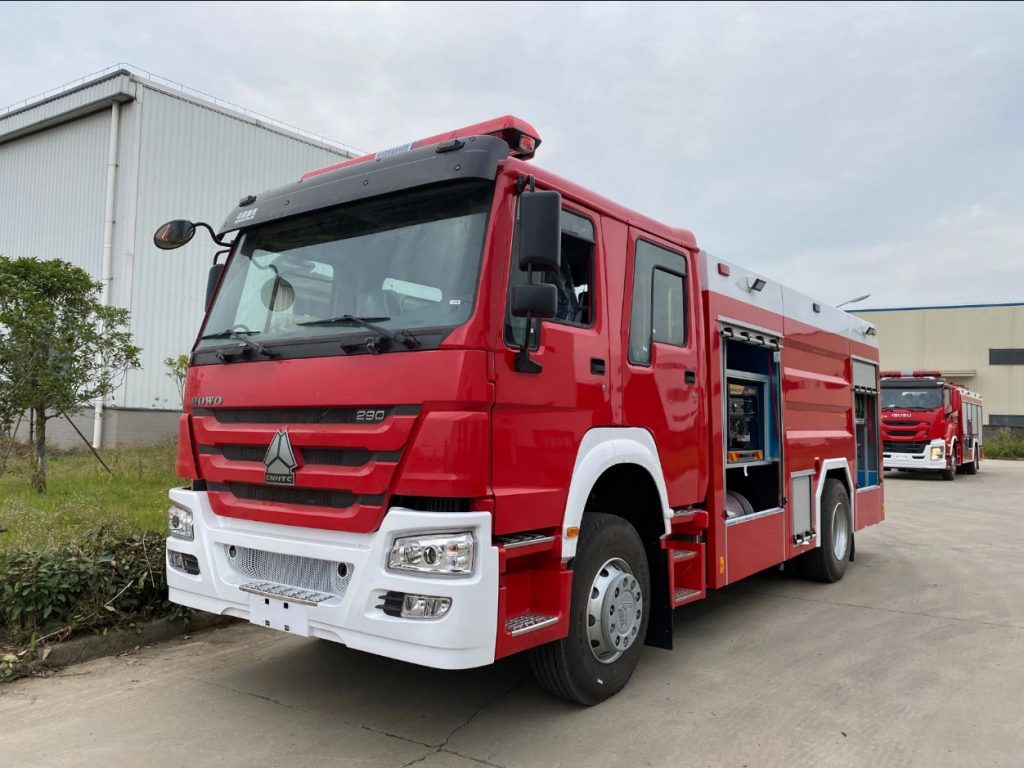

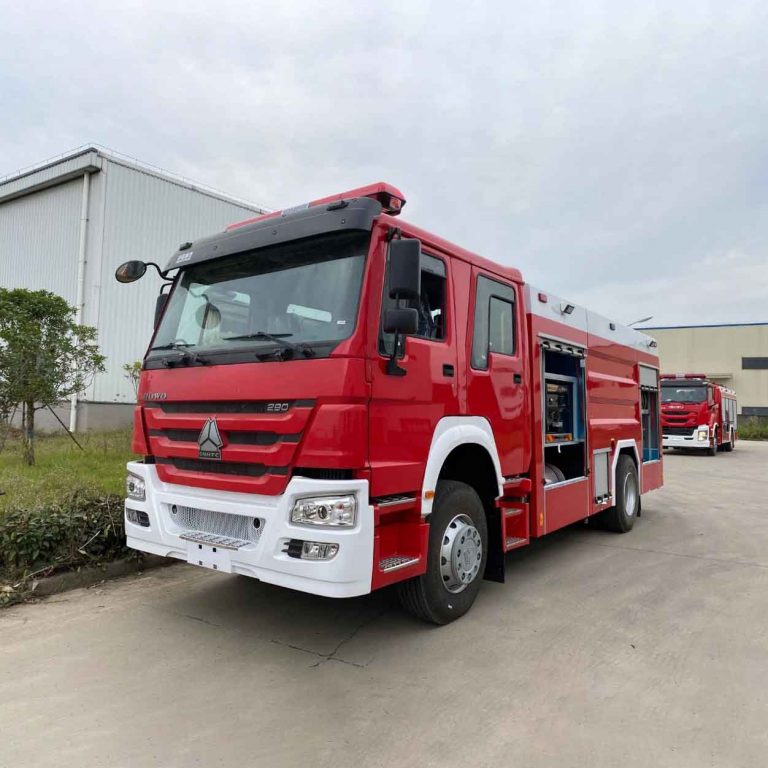

HOWO 6X4 12000L Fire Rescue Truck

Product Parameters

Cabin：Driving type 6×4 Double Row Cab with Air condition

Overall dimensions (L x W x H)mm：10000×2500×3600

Wheel base  (mm)：4325+1350

Wheel track  (front/rear) (mm)：2022/1830/1830

Tare Weight：14300

Payload：18000

Front axles loading capacity：1×7000

Rear axles loading capacity: 2×13000

Max. driving speed(km/h): 90

Brand: SINOTRUK

Type: 4-stroke direct injection , 6-cylinder in-line , turbo-charged and inter-cooled

Emission standard: Euro 2

Gearbox: HW13710, 10 Forwards gear & 2 reverse gear

Clutch: Reinforced diaphragm clutch, diameter 430mm

Steering Gear: ZF 8098,power steering, hydraulic steering with power assistance

Fuel tank (L): 400 liters Aluminium oil tank

Tire: 12R22.5 tubeless tyre,11 pcs including one spare tire

Tank Capacity (L): Water: 10,000, Foam: 2,000

Fire Pump Model: CB20.10/30.60

Fire Pump Flow: 60L/s at Low Pressure 1.0 MPa, 30L/s at Middle Pressure 2.0 Mpa

Fire Monitor Pressure: 1.0~1.2MPa

Flow: 48L/S

Range: Water≥60 m, Foam≥55 m

Rotation angle: 360° Horizontal, -30°~80° Pitch Angle

Product Introduction

Fire truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximumly .

Fire fighting truck can be divided into many types:
1. According to vehicle size , There are mini fire fighting truck , Light fire fighting truck , Medium fire fighting truck , Heavy duty fire fighting truck .
2. According to chassis drive type , there are 4*2 fire fighting truck , 6*4 Fire fighting truck , 8*4 fire fighting truck , and off road type 4*4 , 6*6 fire fighting truck .
3. According to chassis brand , There are ISUZU fire fighting truck , Dongfeng fire fighting truck , Foton fire fighting truck , Faw fight fighting truck , Shacman fire fighting truck , Sinotruk fire fighting truck , Mercdes fire fighting truck , etc .
4. According to fire agent , there are water tank fire fighting truck , dry powder fire fighting truck , water / Foam fire fighting truck.
