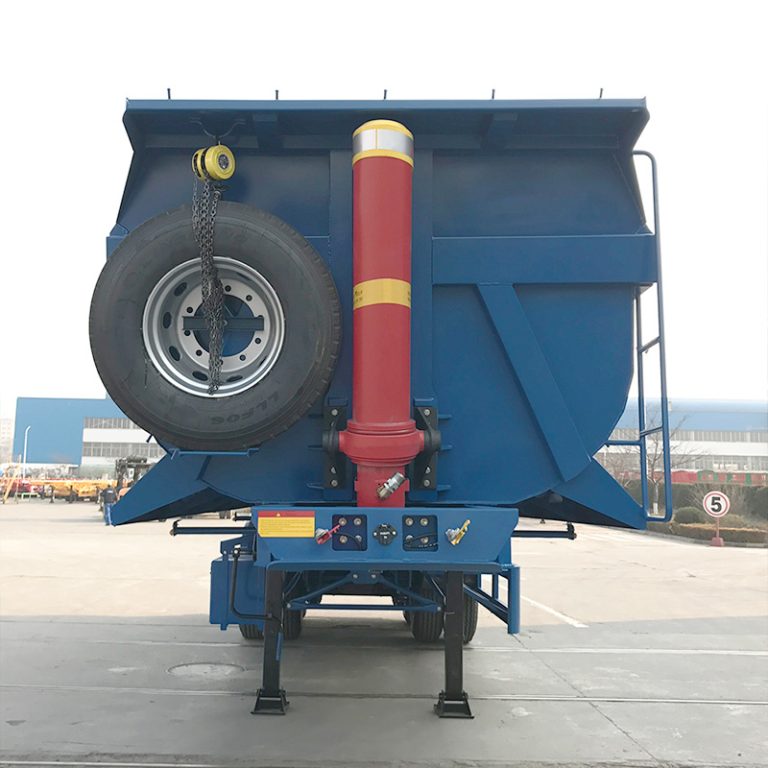

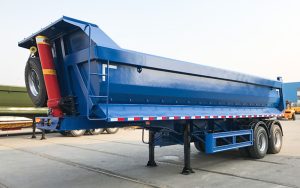

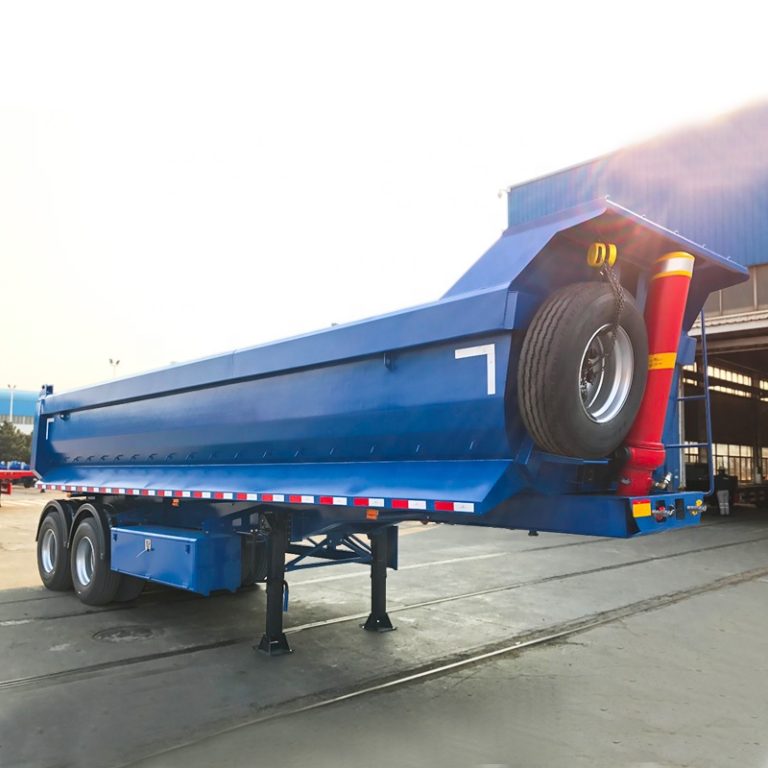

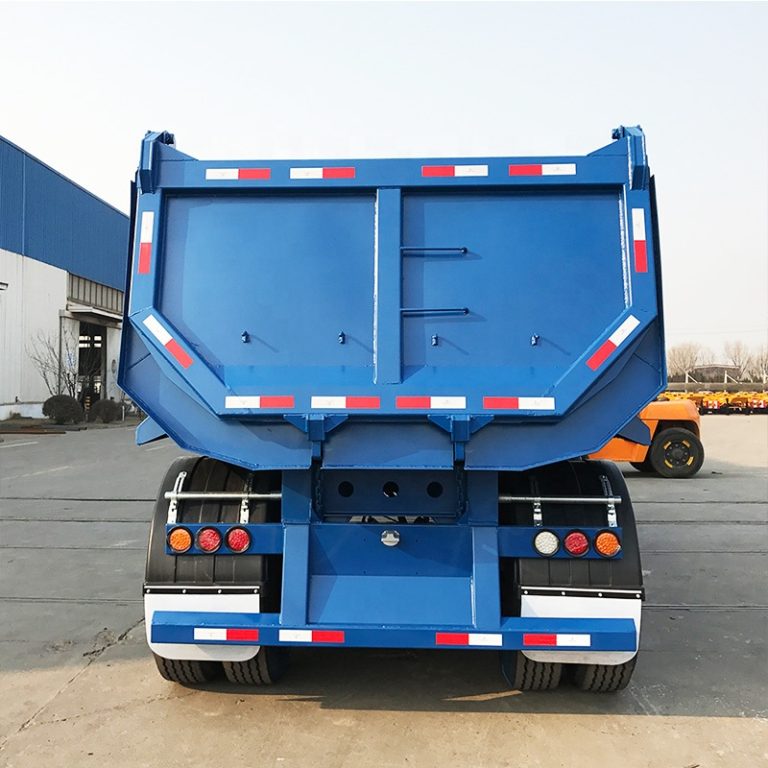

2 Axles 30CBM End Tipper Dump Semi Trailer

Product Parameters

Dimension(L*W*H): 7500*2500*3700 (mm) (Custom-built or Designed according to customers’ needs)

Thickness: Side wall:6 mm; bottom floor:8 mm

Payload (Kg): 60000

Volume (CBM): 20 to 50 CBM

Hydraulic system: HYVA Brand

Kingpin: JOST 3.5”/2.5” bolt-in type

Landing gear: JOST 19”

Tires: 11R22.5 /12R22.5/11.00R20/12.00R20

Axle: FUWA/BPW/ZY or other Brands

Suspension: Heavy Duty Mechanical Suspension with leaf springs/Air suspension/Bogie suspension

Brake system: Dual line with WABCO brand Re-6 emergency relay valve, T30/30 air chamber, 45L air tanks

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Product Introduction

We supply 2 Axles 30CBM Rear Tipper Dump Semi Trailer,30/40/45/50CBM 2/3/4/5 Axles Rear Tipper Dump Semi Trailer, which is normally used to transport unpacked and bulk goods, such as coal, ore, sand and construction materials and etc. We support designing and production according to customers’ different needs, such as sizes, axles, suspensions, box types and capacity.

Bottom and top plate of the dumper trailer would be designed according to international transport standards and different country needs. Normally we would use 8mm and 6mm thickness plat steel to match the heavy loads’ usage, with high resistance, enabling maximum efficiency in any road and weather conditions. The bucket body is made of durable steel, which can withstand the wear and impact of 450HB. The end cover is connected with an adjustable spring that can be opened and closed from the bottom.

Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage. The lattice structure of side borads ensure ort trailers more solid and tough. Besides, stiffeners and unique structural design can help our rear tipper trailers to maximize payload. The widened and thickened leaf spring are also helpful to shock absorption.
