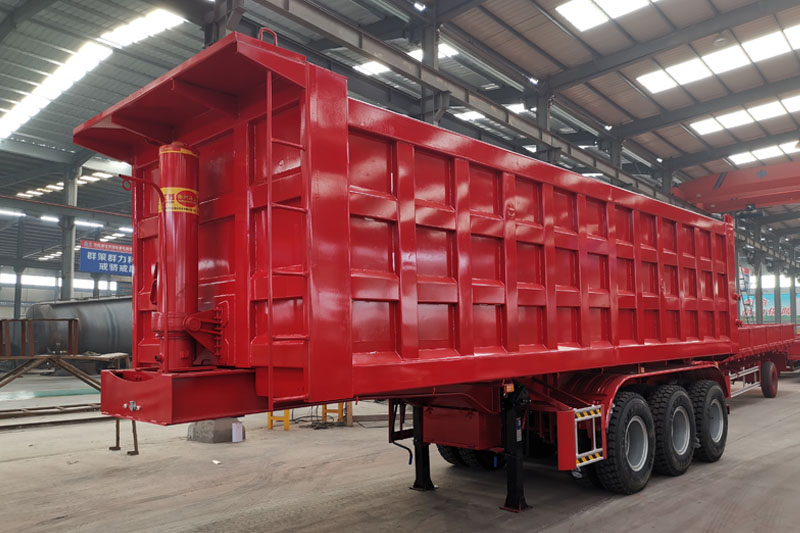

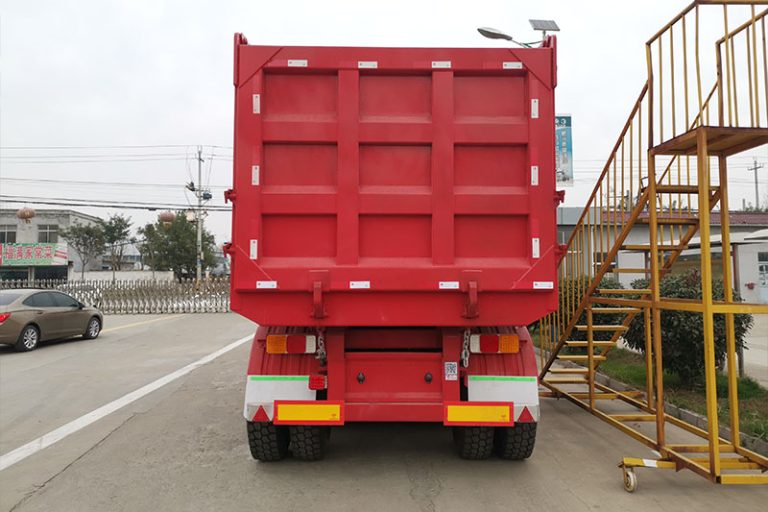

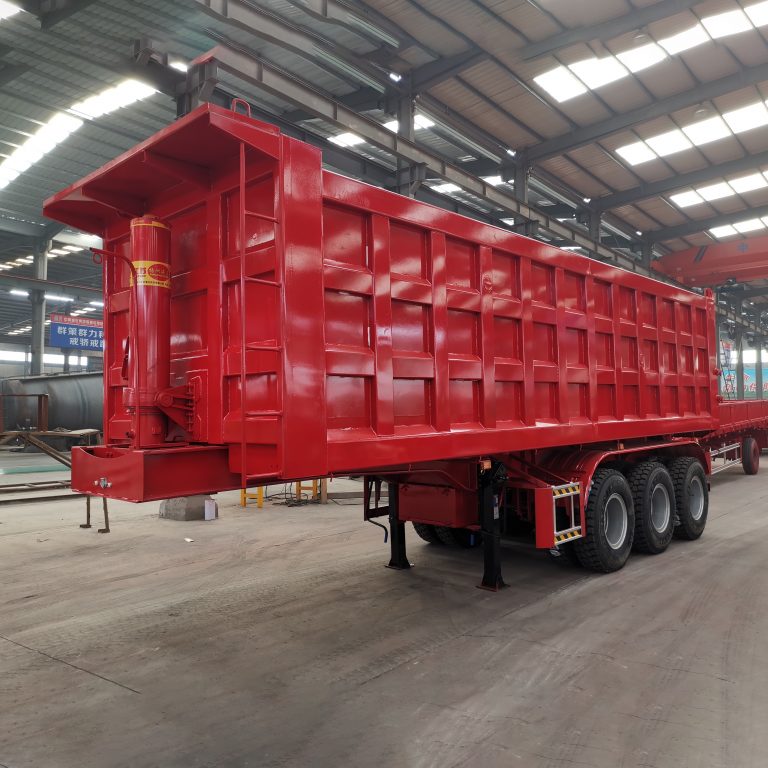

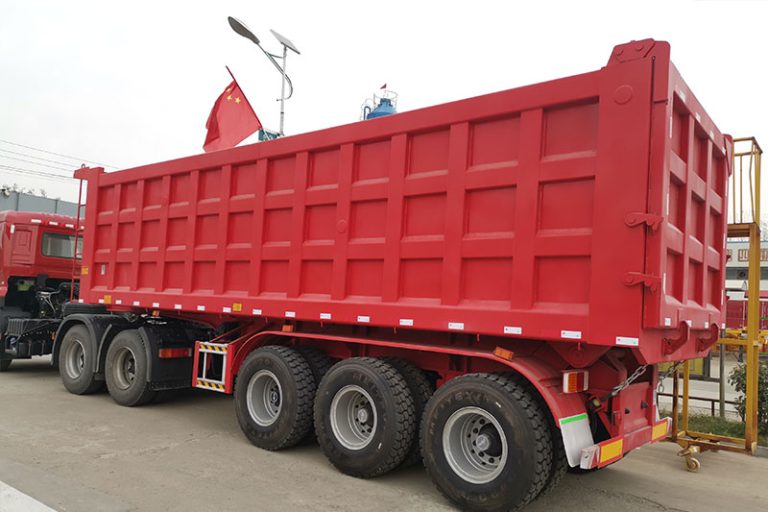

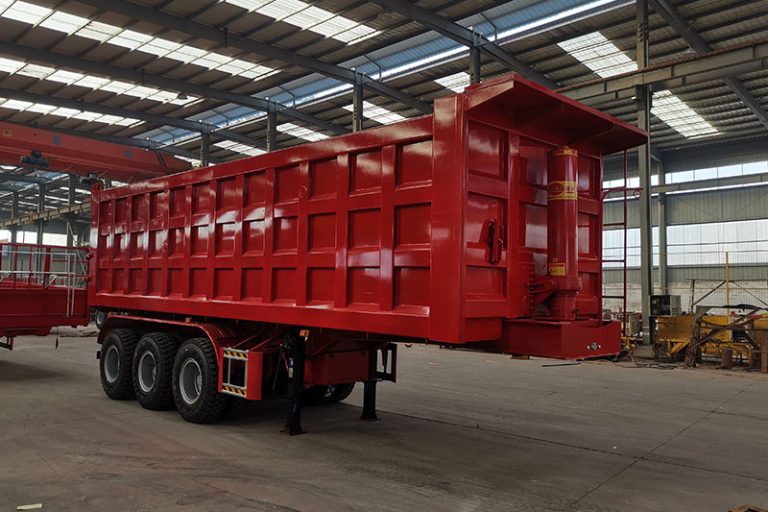

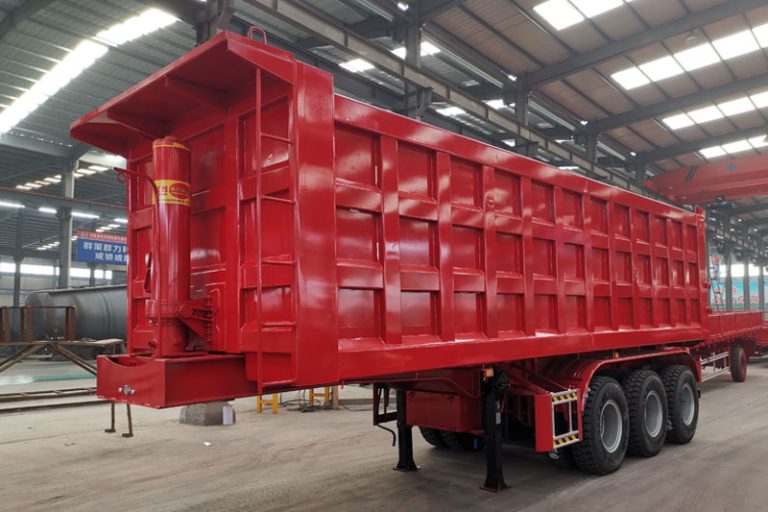

35/40CBM 3 Axles Rear Tipper Semi Trailer

Product Parameter

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 35m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Product Introduction

We supply 30/40/45/50CBM 3/4/5 Axles Rear Tipper Dump Semi Trailer, which is normally used to transport unpacked and bulk goods, such as coal, ore, sand and construction materials and etc. We support designing and production according to customers’ different needs, such as sizes, axles, suspensions, box types and capacity.

Bottom and top plate of the dumper trailer would be designed according to international transport standards and different country needs. Normally we would use 8mm and 6mm thickness plat steel to match the heavy loads’ usage, with high resistance, enabling maximum efficiency in any road and weather conditions. The bucket body is made of durable steel, which can withstand the wear and impact of 450HB. The end cover is connected with an adjustable spring that can be opened and closed from the bottom.
