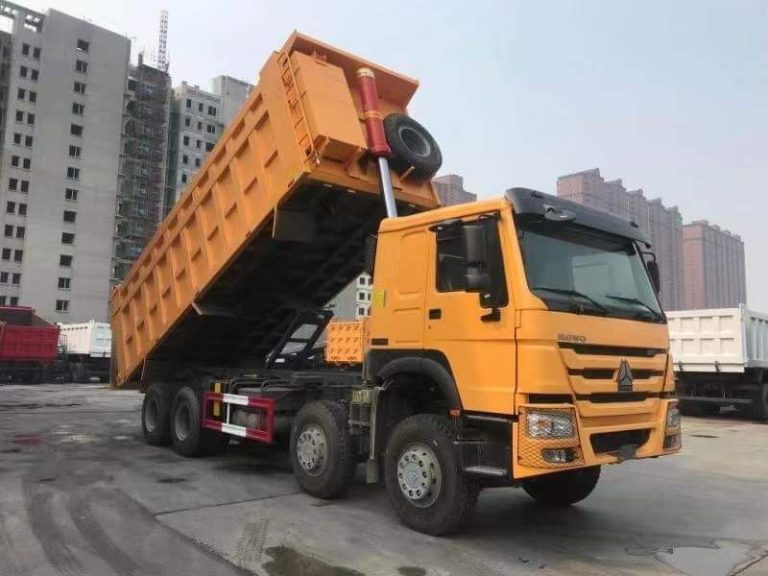

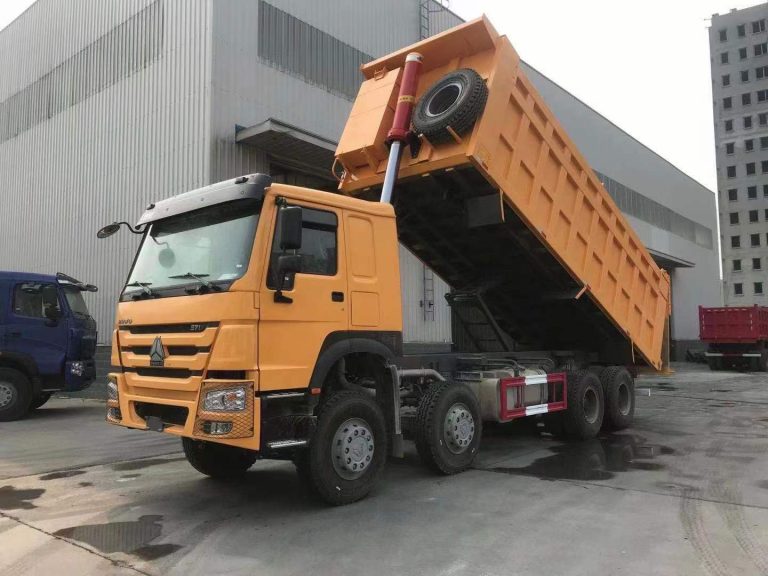

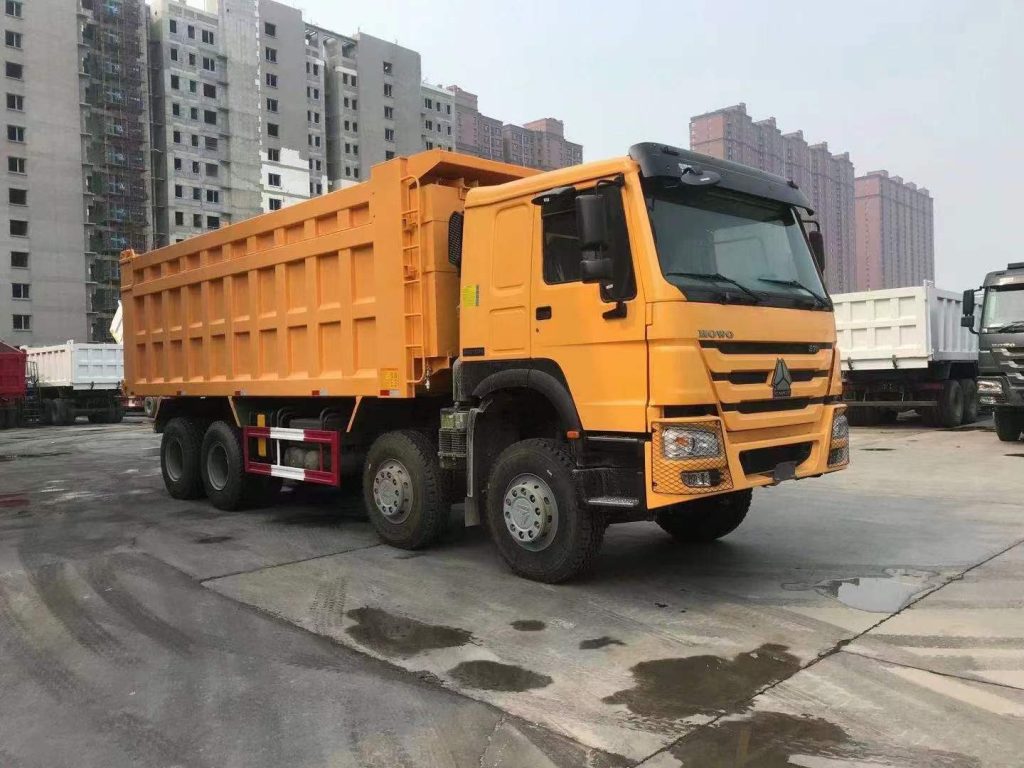

HOWO Factory direct standard 8X4 front lifting tipper dump truck is available fromย SUPREME TRAILER. Howo 8×4 front lifting dump truck can carry about 45 tons cargo which can meet your needs. The durable and cost-effective tipper is your best choice.
1.Product Introduction
HOWO Factory direct standard 8X4 front lifting tipper dump truck is available fromย SUPREME TRAILER. Howo 8×4 front lifting dump truck can carry about 45 tons cargo which can meet your needs. The durable and cost-effective tipper is your best choice.
2.Product Details
3.Product Parameter (Specification)
| Model | Chassis model: ZZ3317N3867W | |
| Engine | WD615.47(371Hp at 2200r/min, Euro II)1500Nm at 1100-1600r/min | |
| Clutch | Single-plate dry diaphragm spring clutch, diameter 430 mm, hydraulically operating with air assistance | |
| Transmission | HW19710, 10 forward and 2 reverse, manual, With HW50 PTO. | |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | HF9ย (9000Kg) | |
| Rear Axles | HC16ย (2x16000Kg) Ratio:ย 5.73 | |
| Chassis | Enhanced version of multiple-leaf springย (Front 11ย pieces, Mid 11 pieces, Rear 12ย pieces) | |
| Fuel tank | With one 300 L fuel tank with locking fuel cap | |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance
Ratio: 22.2-26.2 |
|
| Brakes | With high bumper
Auxiliary brake: engine exhaust brake Withoutย Climate package Without ABS (Optional) |
|
| Wheel & Tires | Rims width: 8.5
Tires: 12.00R20 |
|
| Cab | HW76ย cab, oneย sleeper, all steel forward control, 55ยฐhydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driverโs seat and rigid adjustable co-driverโs seat, heating & ventilation system, exterior sun visor, stereo radio, safety belts, air horn, air conditioner, and single berths with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner, adjustable roof flap.
With air conditioner (optional) |
|
| Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW
Alternator: 3-phrase, 28V, 2240W; Batteries: 2ร12, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp |
|
| Cargo Body | 7800x2300x1500mm, Front lifting, bottom 8mm, side 6mm | |
| Dimensions in mm | Wheel base
Front wheel track Rear wheel track Front overhang Rear overhang Approach angle(o) Departure angle(o) Overall Dimension |
1800+3800+1350
2022 1830 1500 2295 19 17 10745ร3190/3406ร2496(mm) |
| Weight in kg | Netย weight
Maximum load mass Front axle loading capacity Rear axle loading capacity |
16000
34000 9000X2 16000ร2 |
| Performance | Maximum driving speed(km/h)
Maximum grade ablility (%) Minimum ground clearance(mm) Minimum turning circle(m) |
75
35 290 18 |
5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
1.Competitiveย Factoryย Priceย andย Excellentย Quality
2.Moreย thanย 20ย years’ย experienceย asย aย manufacturer
3.Productsย Qualityย Certificationย SGSย CCCย ISO
4.Perfectย after-saleย service
5.Customizedย productsย availableย withย us
6.Exportย toย moreย thanย 50ย countriesย andย regions
7.Overseaย wareshouseย withย moreย thanย 100000ย USย dollorsย spareย partsย inย stock
8.Overseaย officeย withย moreย thanย 15ย professionalย engineersย toย helpย localย customers
LUCKIN VEHICLEย promises that โGood is not enough when better is available.โWe sincerely look forward to your visiting and calling.
