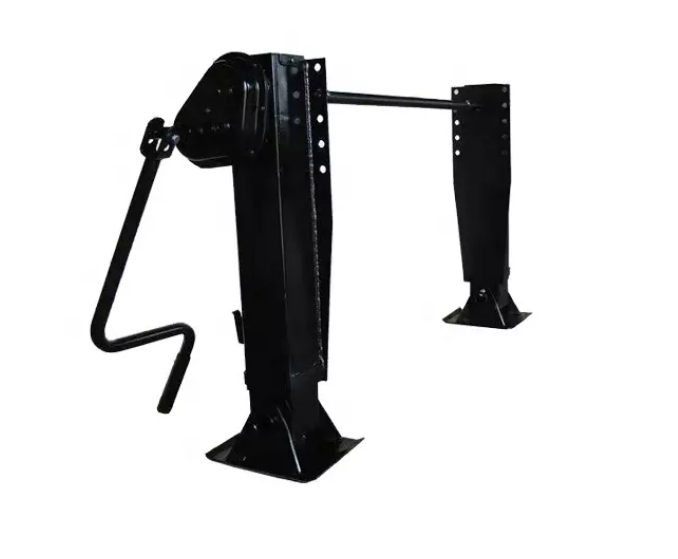

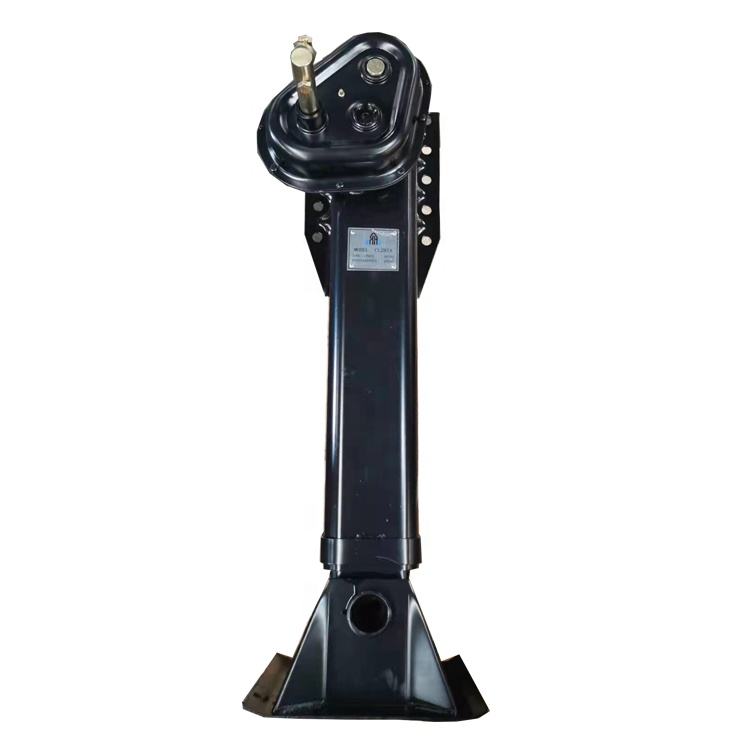

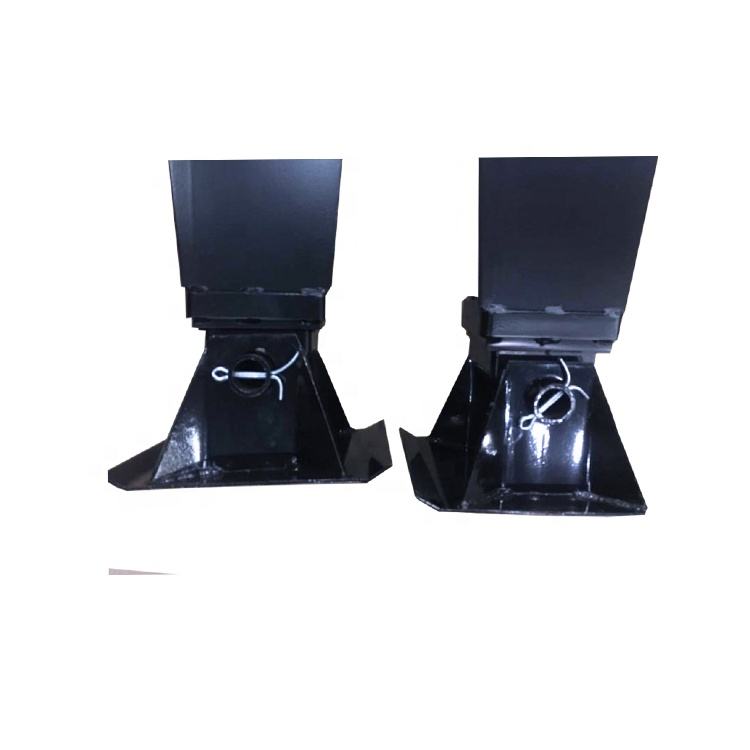

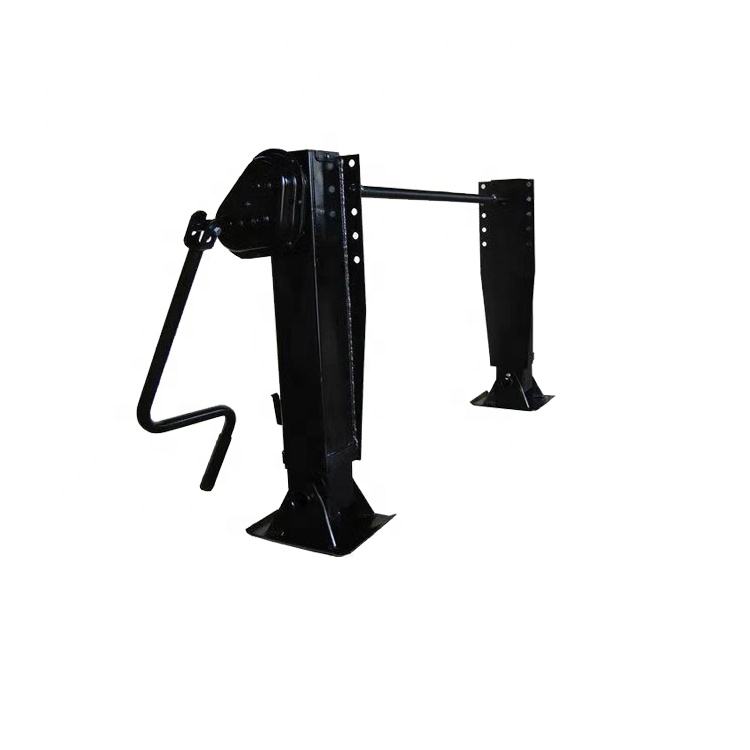

Luckinvehicle supllied American landing gear is a type of truck and semi-trailer spare parts that is used to support the weight of the truck or trailer. It can be used to stop the trailer from tipping over when it is not fully loaded.
Lead Time๏ผ20 days
Shipping Port๏ผAny Port Of China
Payment๏ผT/T;L/C
Product Parameters
Gear inside type:ย
| Type | Travel | Static Capacity | Lifting Capacity | Lift Speed/Turn | Weight (kg) |
Remarks | |
| max | min | ||||||
| QLVA-25 | 14″/17″/19″ | 80T | 25T | 6 | 0.67 | 100 | single-side operation |
| QLVA-28 | 14″/17″/19″ | 80T | 28T | 7.5 | 0.83 | 102 | single-side operation |
| QLVA-30 | 14″/17″/19″ | 80T | 30T | 7.5 | 0.7 | 108 | single-side operation |
Gear outside type:ย
| Type | Travel | Static Capacity | Lifting Capacity | Lift Speed/Turn | Weight (kg) |
Remarks | |
| max | min | ||||||
| QLVA-25 | 14″/17″/19″ | 80T | 25T | 4.33 | 0.57 | 108 | single-side operation |
| QLVA-28 | 14″/17″/19″ | 80T | 28T | 5.42 | 0.72 | 110 | single-side operation |
| QLVA-30 | 14″/17″/19″ | 80T | 30T | 5.42 | 0.72 | 116 | single-side operation |
Product Instruction
The landing gear are made up of two parts: the outside and the inside. The outside landing gear is attached to the outside of the trailer and supports it when itโs being towed. The inside landing gear supports the weight of whatโs in the trailer when itโs being towed or when itโs parked up on its own axles.
LUCKIN VEHICLEย promises that โGood is not enough when better is available.โWe sincerely look forward to your visiting and calling.
