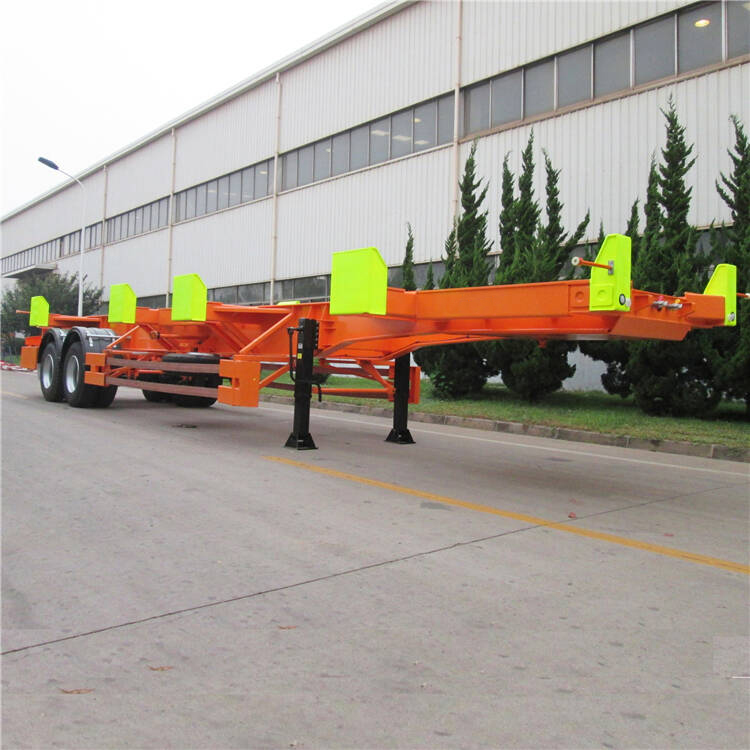

45FT Bomb Carts Container Terminal Chassis Trailer

Dimension(mm): 12500x2500x1550mm (or other sizes)

Transport: 20/40ft containers

Axles: 2/3 axles, 13T/16T, FUWA/ BPW Brand

Tire: 8/12 units, 12.00R22.5 or 315/80R22.5

Suspension: Mechanical/Bogie/Airbag suspension

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand E200

Brake Chamber: WABCO RE 6 relay valves; T30/30+T30 spring braking chamber (TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Painting: S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting

Accessory: One tool box; one set of standard tools.

Product Introduction

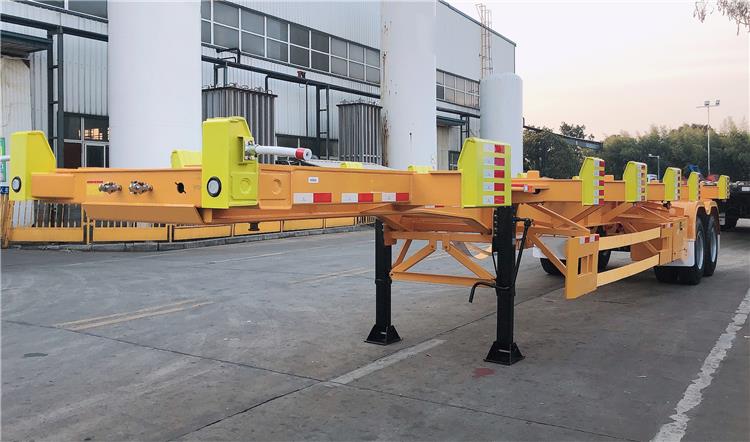

LUCKIN VEHICLE 40ft Skeletal Container Terminal Semi-trailer is specially designed for shuttling between shore crane and container stacking with special features that facilitate easy container loading and maximize the productivity of the terminal operation.

The 40FT Skeleton Container Semi Trailer for sale is an economically feasible and practical trailer to use. The truck chassis can easily load and unload high-weight containers. This terminal trailer is adjustable to meet your desired maneuverability conditions for loading and offloading. Adjustments to axle spacing can also be made based on your needs.

LUCKIN Yard terminal trailer includes 20, 40, 45 foot and other types. It is dedicated to transporting containers. It contains two kinds of skeletal trailer for long distance transportation and terminal trailer for port transportation.

LUCKIN VEHICLE adopts automatic submerged arc welding method to weld the main beam. The longitudinal beam is completed by automatic tracking submerged arc welding machine. All components are shot peening to improve paint adhesion and are painted prior to assembly, making the main beam stronger and more durable.
